IS 2629 HDG> 86µ Zinc Coating
ISO 9001:2015Quality Certified
Direct PlantDanapur, Patna
Outdoor Fitness & Gym Equipment• RS-GYM-02

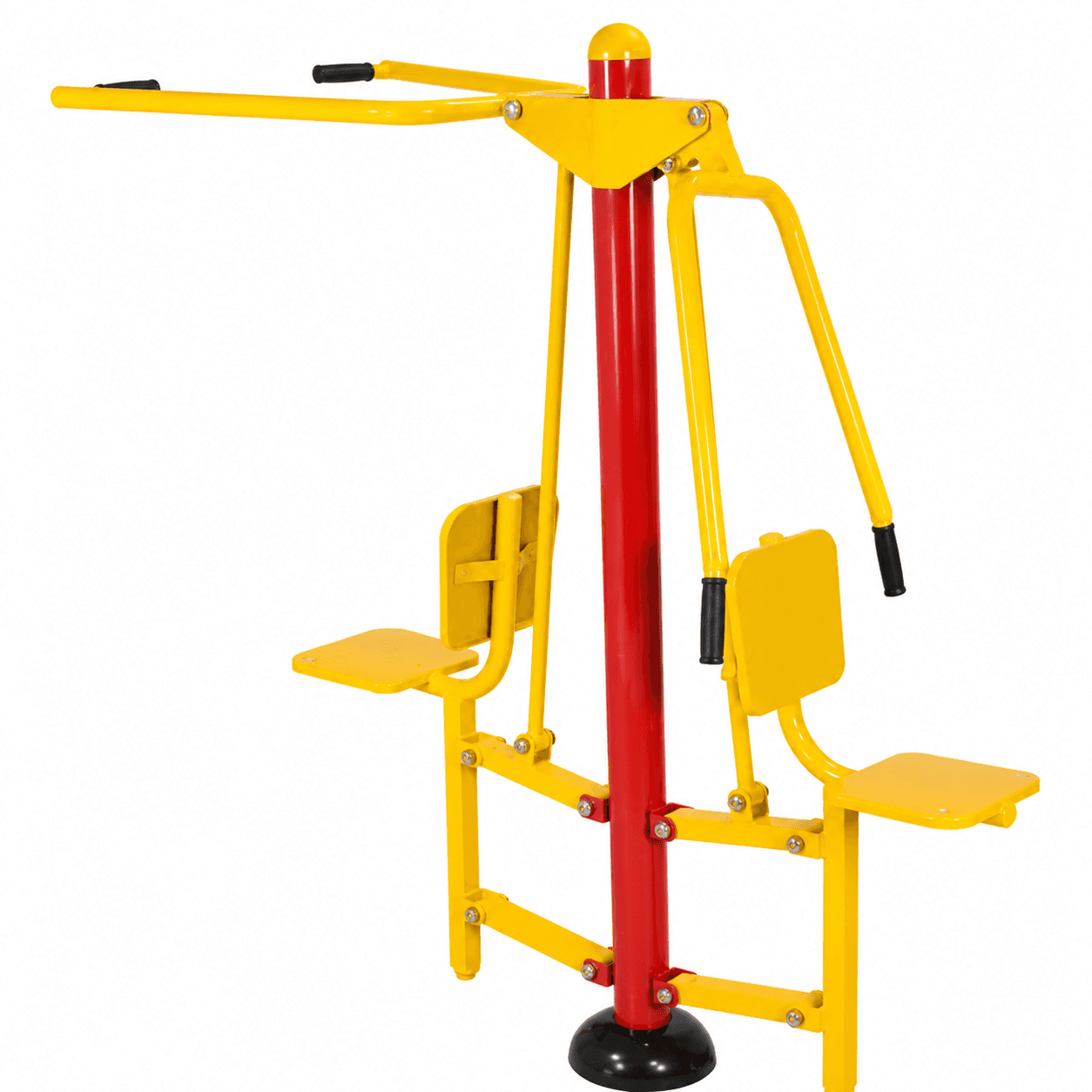

Seated Chest Press & Lat Pull Down Station
Dual-station upper body fitness machine combining seated chest press and lat pull-down for upper body strength and posture enhancement.
COMMERCIAL POLICY Direct Wholesale & Tender PricingCustomization available according to project drawings
Request QuotationKEY HIGHLIGHTS & ADVANTAGES
High-tensile steel tubular frame with 114mm central structural column
Ergonomically contoured handles with high-density PVC grip sleeves
All-weather heavy-duty virgin LLDPE / cast iron seats with drainage channels
Sealed pivot joints with weather-resistant dust caps for zero maintenance
Salt-spray tested electrostatic powder coating resisting rain, UV, and corrosion
Independent dual workout stations for multi-user civic installations
RECOMMENDED APPLICATIONS
Smart City Open Air Fitness CentersMunicipal Community Parks and Walking TracksResidential Gated Complexes & TownshipsPolice / Army Training Grounds and UniversitiesGovernment Tender Project BOQs
MANUFACTURING PARAMETERS
Technical Specifications
| Specification / Parameter | Standard Engineering Value |
|---|---|
| Equipment Type | Dual Station Chest Press & Lat Pull Down |
| Target Muscles | Pectorals, Deltoids, Latissimus Dorsi, Biceps & Triceps |
| Main Column Diameter | 114 mm OD GI Pipe |
| Arm & Lever Diameter | 48 mm OD Pipe (3.0 mm Thickness) |
| Seat Construction | UV-Stabilized Molded Plastic / Heavy-Duty Steel Plate with Drainage |
| Pivot Mechanism | Heavy Duty Self-Lubricating Double Sealed Bearings |
| Surface Finish | Electrostatic Polyester Powder Coating |
| Installation | Concrete Ground Anchor with M16 Foundation Bolts |
| Resistance Type | Body Weight Lever Mechanism (Safe & Maintenance-Free) |
Project Note: Share your park layout and quantity requirements for complete factory BOQ pricing.
